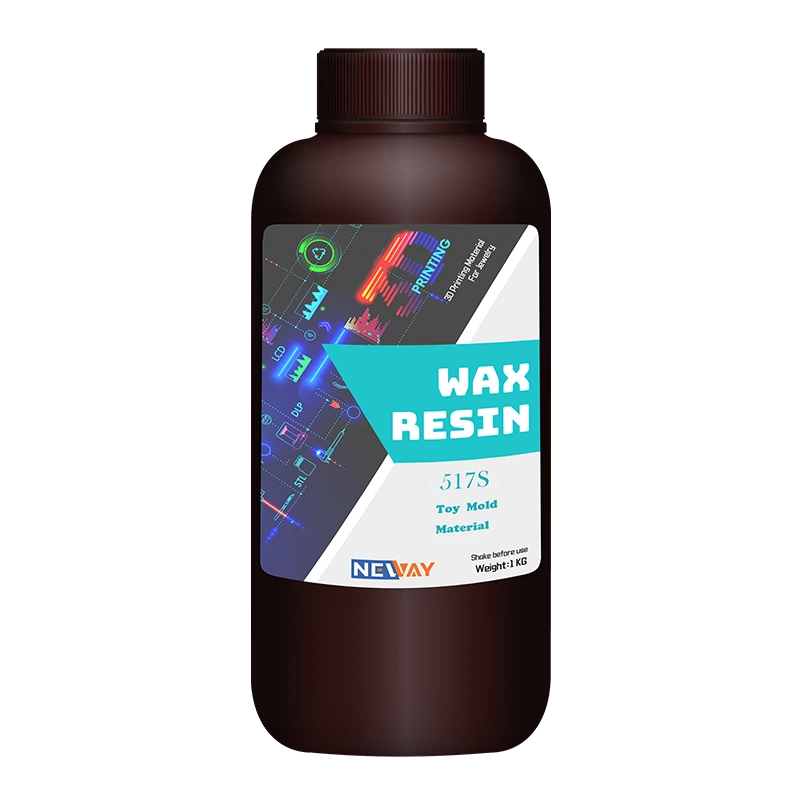

517S LCD Model Resin
|
Viscosity |
510Mpa*s |
|
Flexural Strength |
32Mpa |
|
Flexural Modulus |
2850Mpa |
|
Izod Impact-Notched |
17J/m² |
|
Density |
1.08g/cm³ |
|
Hardness(Shore D) |
85 Shore |
Product Description
The high-strength resin has higher hardness and strength, which also has very smooth surface. What you see is what you get. It can instantly turn the designer’s inspiration into an object that you can see, which can provide reference to the modification of design.
Quick verification
It can capture complicated details, you don't need to worry that the feature is too small to print, which is an ideal choice for small holes and thin nails, and it can also create challenging and unique model.
Perfect match
It does not need polishing, the model printed by the machine has smooth surface, and perfect result can be realized with minimum polishing.

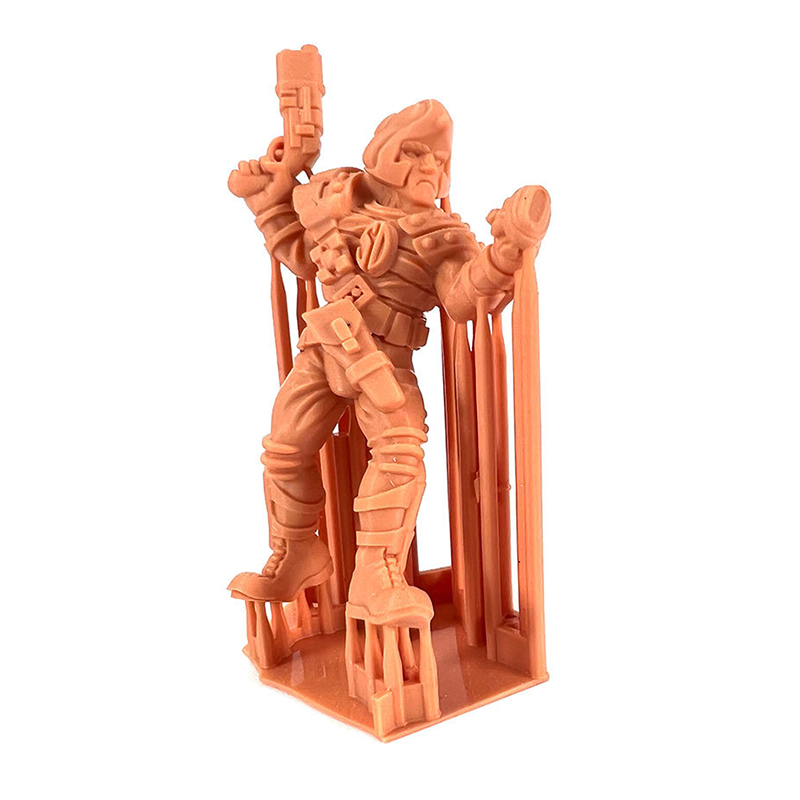

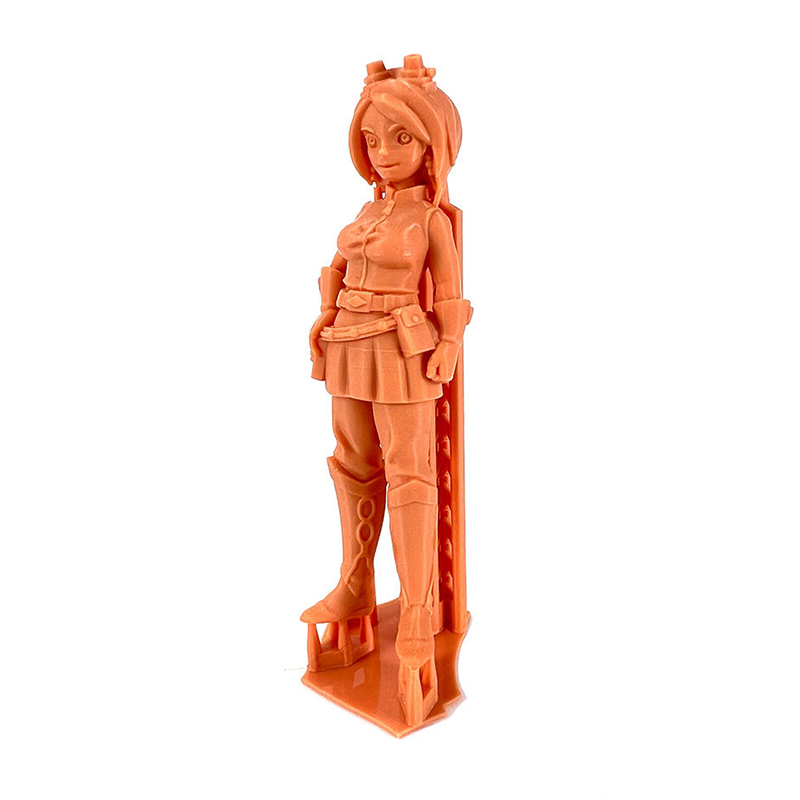

PRODUCT DISPLAY
Frequently Asked Questions
Q: What is 517S LCD model resin?
A: 517S is a high-detail, general-purpose LCD model resin for 405 nm printers. It is engineered for crisp surface detail and minimal polishing, so finished models look clean straight off the printer.
Q: What layer height should I use for 517S?
A: For jewelry-style detail print at 25-50 µm layers. Lower layers give smoother surfaces; thicker layers speed production for less detail-sensitive prototypes or display models.
Q: How do I finish a 517S print?
A: Wash the print in 90%+ isopropyl alcohol to remove uncured resin, then post-cure under UV for 1-5 minutes. Thanks to its surface quality, only light sanding or polishing is usually needed.
Q: Can 517S resin be used for casting?
A: 517S is a model resin built for display and master patterns rather than burnout. For direct lost-wax investment casting, use a dedicated casting or white wax resin designed to decompose cleanly.
Q: Which printers are compatible with 517S?
A: It works with any 405 nm LCD, DLP or SLA printer. Results are best when the printer's light intensity and layer settings are tuned to the resin's recommended profile.
