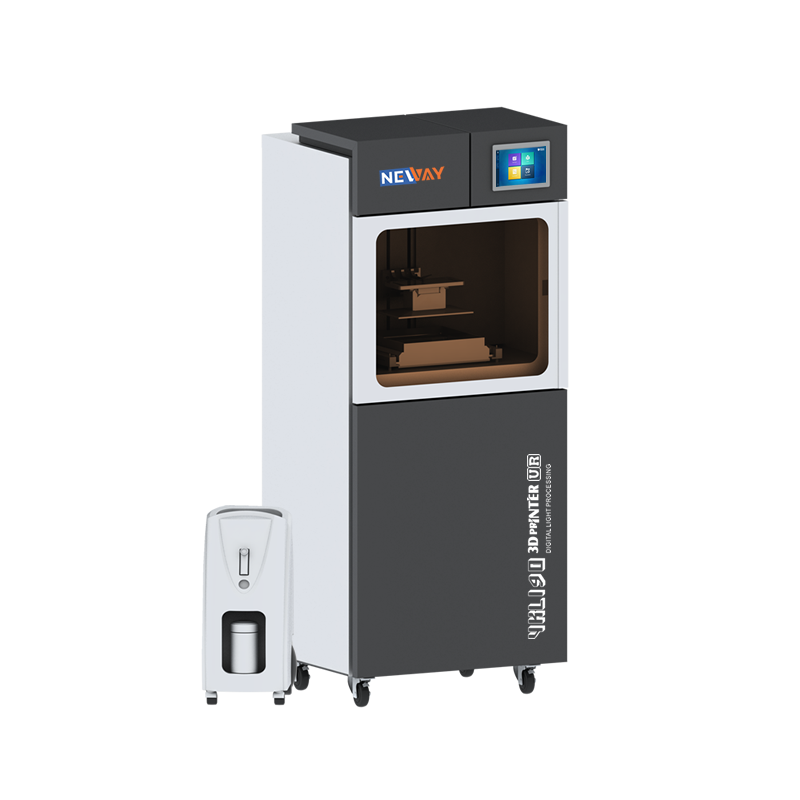

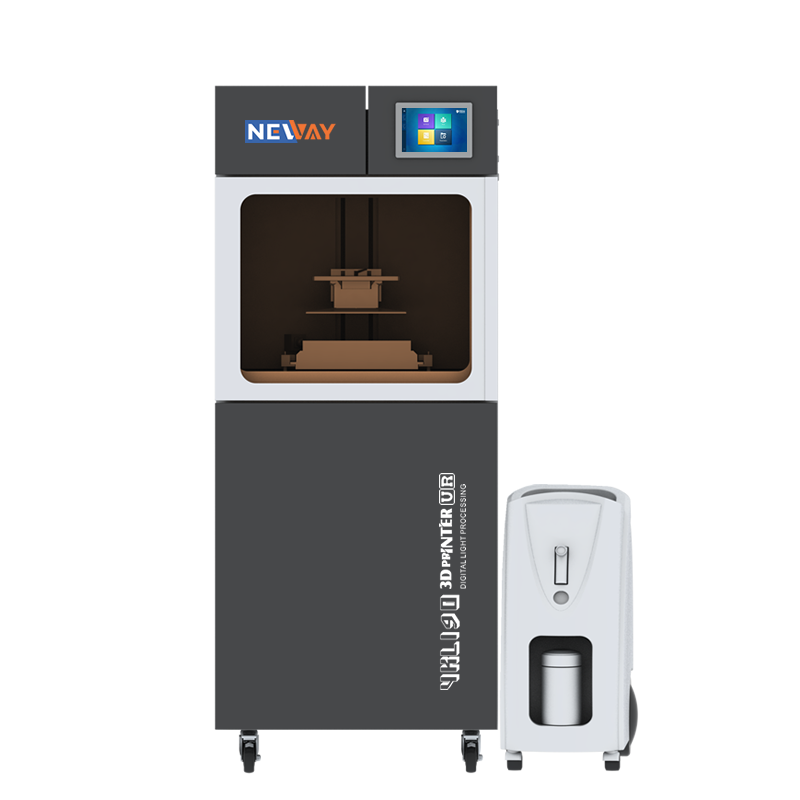

DLP White Wax 3DPrinter 4KL190UR with oxygen generator for jewelry industry
|
Brand |
Neway |
|
Scanning Mode |
UR DLP |
|
Formation Space |
192×108×300mm |
|
X\Y Axis Precision |
50μm |
|
Z Axis Precision |
10-25μm adjustable |
|
Device Size |
70×60×168cm |
|
Weight |
175Kg |
|
Printing Speed |
15-50mm/h |
|
Materials |
CW2000 |
Product Description
4KL190UR is an Industrial-grade Ultra Rapid Printing DLP-3D printer. The printingspeed is increased several times, accuracy is higher, and the surface is smoother.As a new 3D plus technology, after countless technical upgrades, has beenvigorously applied in the jewelry industry and can be used as mass productiontools. Equipped with oxygen generator and oxygen permeable release filmsuitable for high wax-contain resin, this model is an excellent choice for big andthick parts that are difficult to cast or require mass production. With super highstability and continuous working ability, it has been unanimously recognized bycustomers.4KL190UR uses a professional ultra-high resolution projection optical enginewith a resolution of 4K(3840x2160).High illumination uniformity, ensuringstable molding of every position in the forming surface. Using high-stability LEDUV light source, to ensure the reliable forming of the printing process. Multipleor large-size models can be printed, 250 rings can be printed in two hours.The use of high oxygen permeable release film and special release technologymakes the release lighter and smoother, higher success rate,simplermaintenance, and the service life of the release film is longer than conventionalproducts, greatly reducing low cost.
Product Details
Advanced Printing Enhances Gemstone Setting
Advanced printing creates smoother,precisely dimensioned circular holes,enhancing gemstone setting efficiencyby reducing drilling steps, saving time.minimizing material loss, and securinggemstones in jewelry for improvedqualityand durability.
Extreme reproduction
98.7% high degree of reproduction to show the beauty of the details.
Effortlessly craft jewelrythat matches your CAD designswith stunning precision.Perfectly showcase intricatedetails like engravings, textures,and gemstone cuts. Achieveimpeccable realism and exactdetail handling in every piece.

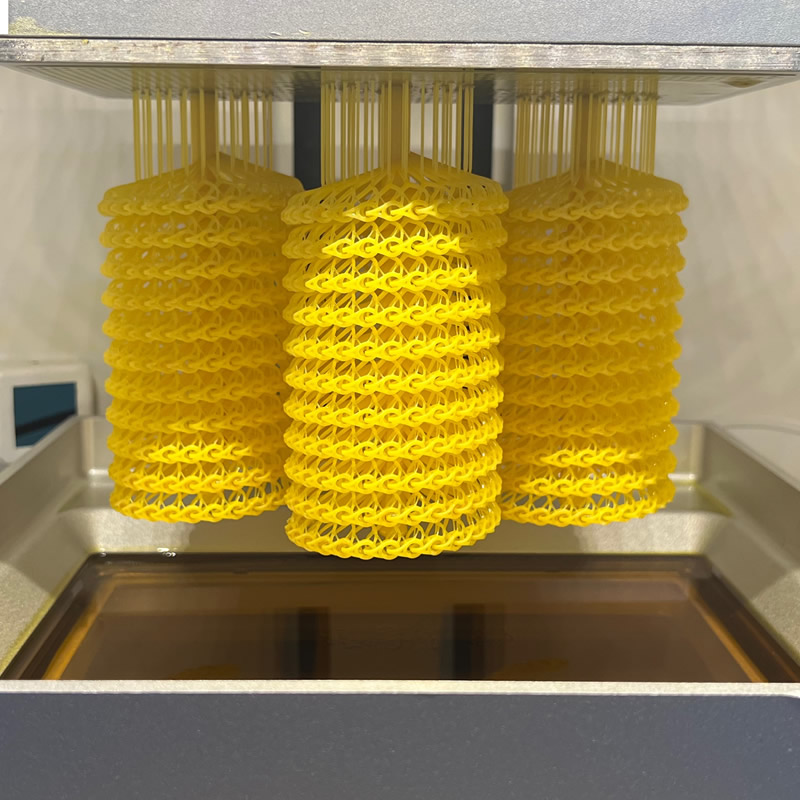

Advanced Low Peeling Force Technology
Utilizing advanced low peelingforce technology and a highwax content resin designedfor intricate jewelry, printscan be achieved withminimal or no support.
This innovative approachreduces support materialby up to two-thirds,facilitating easy manualremoval without riskingdamage to the model itselfduring post-processing.
Discover the Ultimate in Smooth Surfaces
Incredible 19-micron precision,creating exquisitely smoothand delicate model surfaces.Every detail is vividly clearunder magnification, ensuringminimal post-moldingprocessing costs andpreserving precious metals.
Frequently Asked Questions
Q: What is the 4KL200UR used for?
A: The 4KL200UR is an industrial DLP white wax 3D printer built for jewelry production, with an integrated oxygen generator that keeps release-layer performance stable across long runs.
Q: What resolution does the 4KL200UR reach?
A: As a 4K-class DLP machine it delivers fine X/Y pixel accuracy and adjustable Z layers around 10-25 µm, capturing filigree, engraving and stone-seat details cleanly.
Q: How does the oxygen generator help?
A: The built-in oxygen generator maintains a consistent non-curing dead layer between the vat window and the part. This improves release reliability, extends vat life and keeps illumination uniform across the build plate.
Q: What file formats does it support?
A: It accepts standard slicer outputs such as STL and OBJ, transferred over USB or network. You prepare supports and nesting in your preferred slicer, then send the job to the printer.
Q: Is the 4KL200UR a good production machine?
A: Yes. Its even illumination and industrial build make it suitable for daily production of white wax casting patterns, where repeatability and low per-piece labor matter more than the lowest upfront price.
