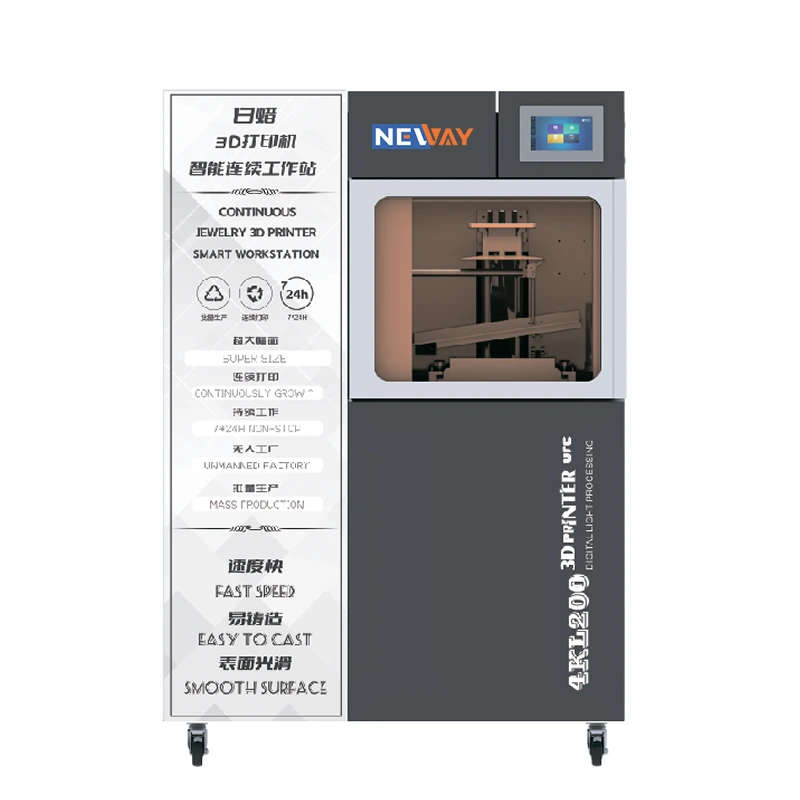

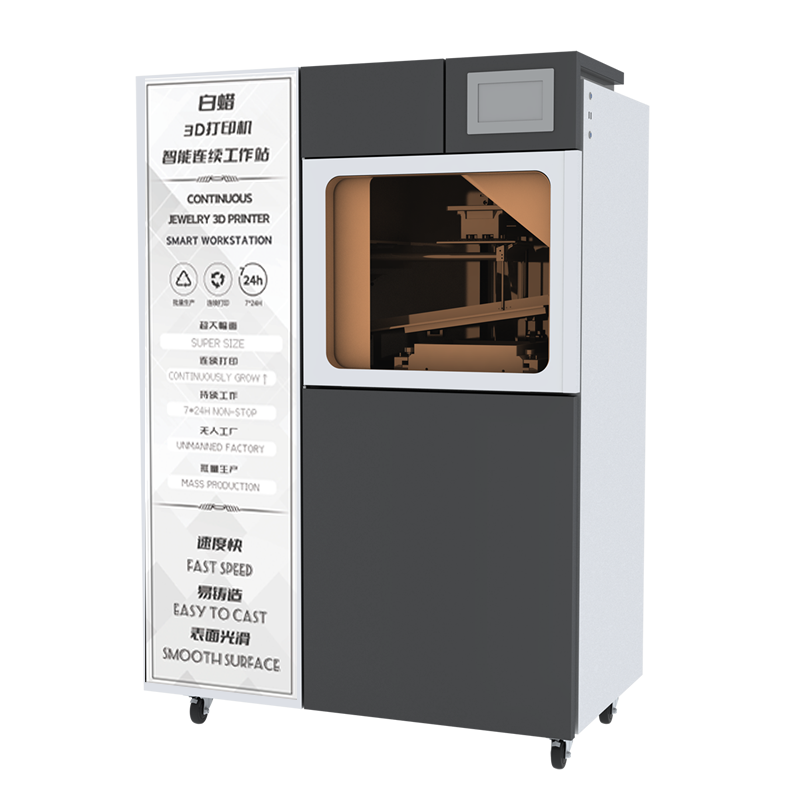

DLP White Wax 3DPrinter 4KL200URC with oxygen generator for jewelry industry
|
Brand |
Neway |
|
Scanning Mode |
URC DLP |
|
Formation Space |
200×112×300mm |
|
X\Y Axis Precision |
50μm |
|
Z Axis Precision |
10-25μm adjustable |
|
Device Size |
124×67×168cm |
|
Weight |
323Kg |
|
Printing Speed |
15-50mm/h |
|
Materials |
CW2000 |
Product Description

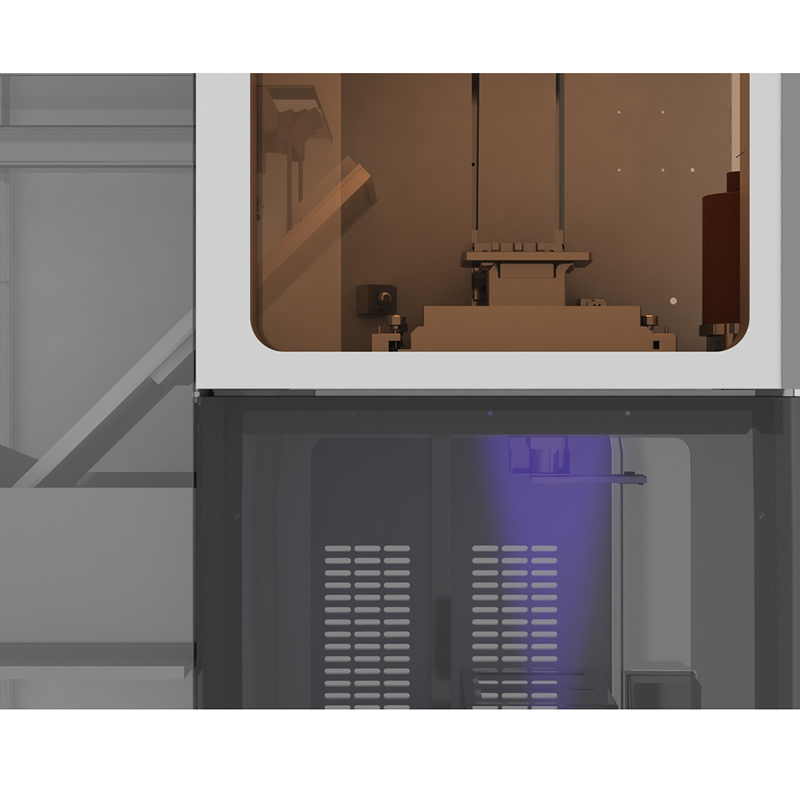

The Ultra Rapid Continuous series adopt the latest ultra-fast continuous DLP-3D printing technology, the printing speed is increased several times, the precision is higher, the surface is smoother. The use of high oxygen permeability release film and special release process makes the release easier and smoother, with a higher success rate and easier maintenance.
At the same time, the automatic pick-up can complete the pick-up and continue to work without being on duty. Machine vision judges the success rate of printing, and remote monitoring ensures that printing is foolproof.
The use of high oxygen permeable release film and special release technology makes the release lighter and smoother, higher success rate, simpler maintenance, and the service life of the release film is longer than conventional products, greatly reducing low cost.
Product Details
Advanced Printing Enhances Gemstone Setting
Advanced printing creates smoother,precisely dimensioned circular holes,enhancing gemstone setting efficiencyby reducing drilling steps, saving time.minimizing material loss, and securinggemstones in jewelry for improvedqualityand durability.

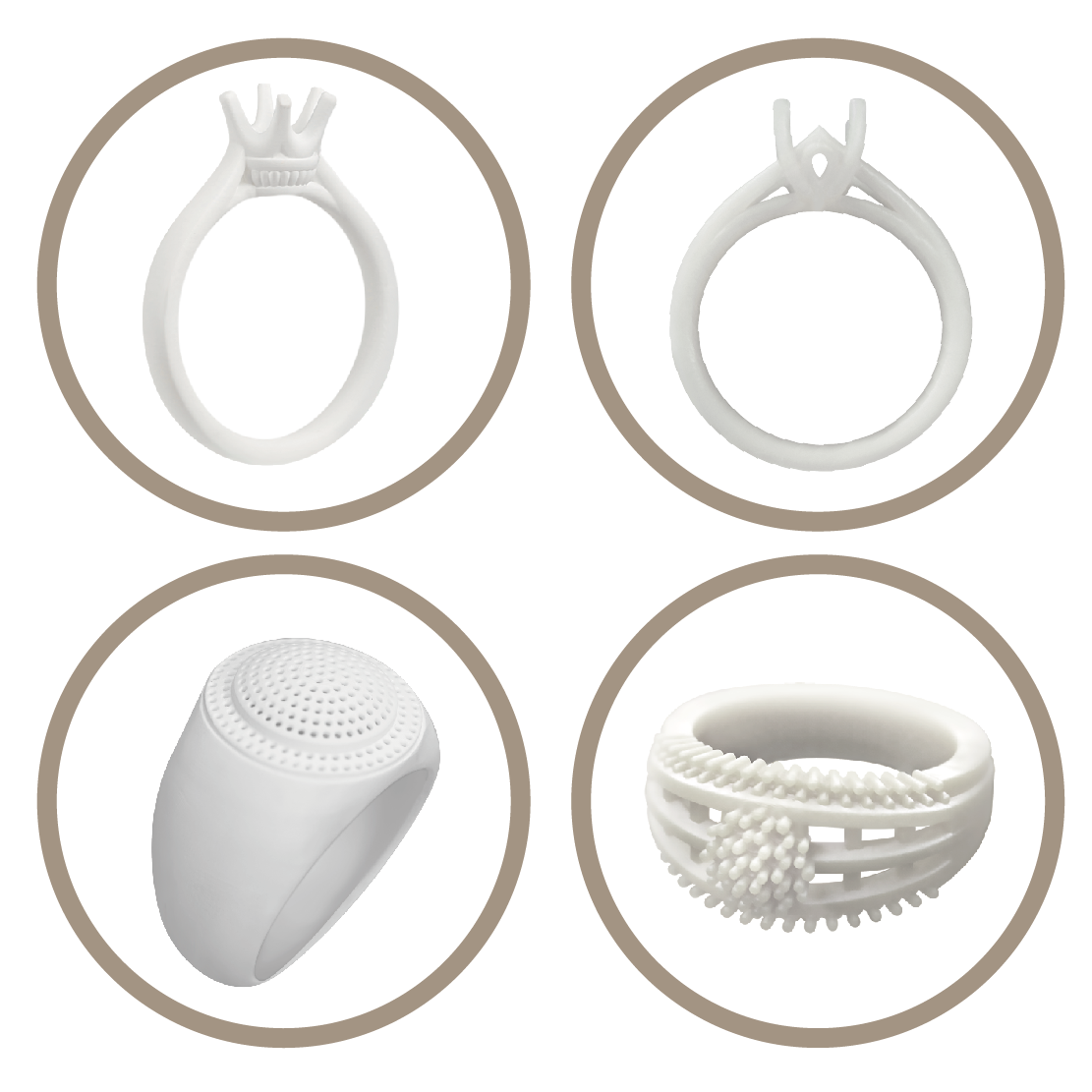

Extreme reproduction
98.7% high degree of reproduction to show the beauty of the details.
Effortlessly craft jewelrythat matches your CAD designswith stunning precision.Perfectly showcase intricatedetails like engravings, textures,and gemstone cuts. Achieveimpeccable realism and exactdetail handling in every piece.
Advanced Low Peeling Force Technology
Utilizing advanced low peelingforce technology and a highwax content resin designedfor intricate jewelry, printscan be achieved withminimal or no support.
This innovative approachreduces support materialby up to two-thirds,facilitating easy manualremoval without riskingdamage to the model itselfduring post-processing.
Discover the Ultimate in Smooth Surfaces
Incredible 19-micron precision,creating exquisitely smoothand delicate model surfaces.Every detail is vividly clearunder magnification, ensuringminimal post-moldingprocessing costs andpreserving precious metals.
Frequently Asked Questions
Q: What does the C stand for in 4KL200URC?
A: The C denotes a continuous / continuous-printing configuration of the 4KL200UR DLP white wax printer. Continuous-mode printing raises throughput by reducing layer-change delays.
Q: What resolution does the 4KL200URC have?
A: It is a 4K DLP machine with fine X/Y pixel precision and adjustable Z layers of roughly 10-25 µm, giving smooth surfaces that cast with minimal polishing.
Q: How does continuous printing improve speed?
A: By maintaining a steady non-curing oxygen layer, the build plate rises continuously instead of pausing after every layer. This shortens total job time and boosts daily output for batch jewelry production.
Q: What build volume does it offer?
A: The 200-series DLP line uses a generous build area designed to pack multiple ring trees per job. Exact dimensions are confirmed in the datasheet; contact sales for the current 4KL200URC spec sheet.
Q: Is continuous printing reliable for casting patterns?
A: Yes, when paired with a matched white wax resin and the correct release-layer settings. The result is repeatable, burnout-clean patterns with consistent surface quality run after run.
